RX 100-20

Rack Mounted Connectivity with RX Series Protection

RX Series protection has been tested and proven effective. The RX 100-20 features the Juice Goose Hybrid Filter Technology to improve electronic performance and protect against power line voltage surges and high frequency interference on the hot, neutral and ground leads.

Features include:

• 20 Amp Capacity (see also RX 100-15)
• Maximum 10 Volt Surge Between Line and Neutral
• Maximum 0.50 Volt Surge On Ground
• High Frequency Normal and Common Mode Noise Filtration
• Over Voltage Shutdown
• Protection Against External Wiring Faults
• 8 AC Outlets
• Sturdy, Tour Class (tm) chassis

Juice Goose RX Series power protection technology works against ground line (common mode) as well as hot-neutral (normal mode) surge events. While common mode surges and disturbances don't typically cause catastrophic damage, they can result in operating failures and improper performance of digital processing equipment. Since a power anomaly of  even 1 or 2 volts on logic ground can cause problems, the RX Series is designed to have a voltage surge  let through of only 0.50 (one half) volt on the ground.

The Hybrid Filter also protects against more dramatic events. Connected equipment is safe from surges up to 6,000 volts at 3,000 amps between hot and neutral, allowing a maximum 10.0 volt surge let through.

The RX Series uses a Hybrid Filter Technology that will not contaminate the ground. Instead, it cleans it up.

RX 100-20 FEATURES

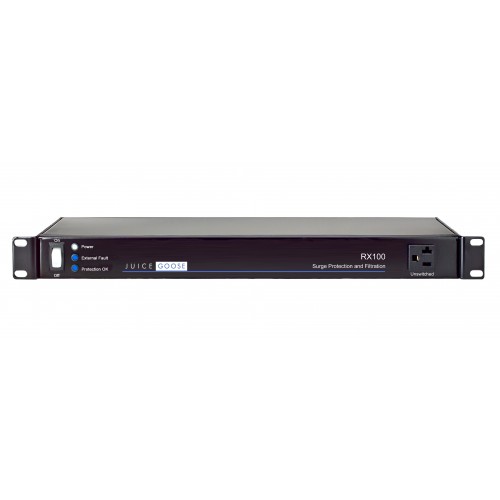

The Juice Goose RX 100-15 has seven NEMA 5-20R receptacles on the back of the chassis and one on the front. LEDs on the front of the unit indicate active power protection or external wiring fault. The Tour Class (tm) chassis consists of single piece construction for the main chassis and reinforced mounting brackets formed from cold rolled steel.
